Lithium Niobate Wafers


Product Description

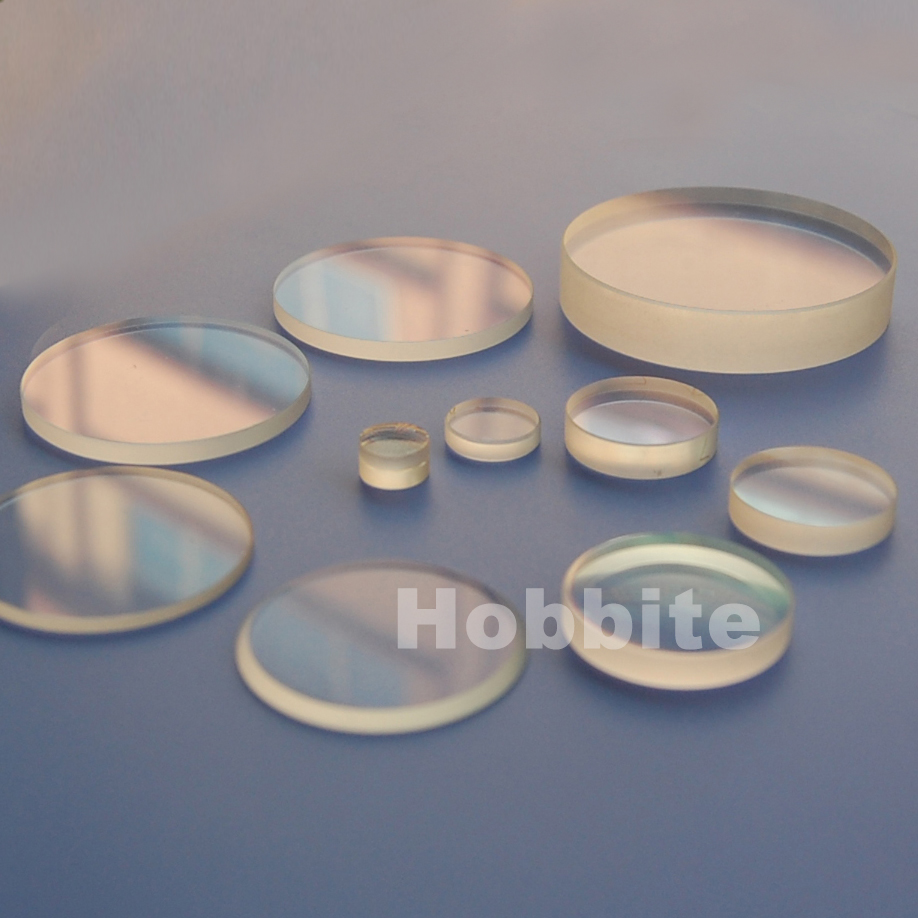

Hobbite® Wafer (Lithium Niobate Wafers)

Hobbite can provide Lithium Niobate (LiNbO3) applications include electro-optic modulator and Q-switch for Nd:YAG, Nd:YLF and Ti:Sapphire lasers as well as modulator for fiber optics.

We also supply “black” wafers free of pyroelectric discharge: detailed specifications

Examples of common applications of Lithium niobate (LiNbO3) are illustrated in this diagram:

Applications

LiNbO3 applications

Typical Specifications (for SAW use)

Orientation Diameter Reference Flat Perpendicular to Thickness Surface Finish
127.86° Y – Cut 76.2 ± 0.7 (mm)
and
100.0 ± 0.7 (mm)
22 ± 3 (mm)
and
32 ± 3 (mm)
X 0.35 ± 0.03 (mm)
and
0.50 ± 0.03 (mm)
Front Mirror Polished
64° Y – Cut X
41° Y – Cut X Back Ground
36° Y – Cut X
163° Y – Cut Y
Y – Cut X

LiNbO3

LiNbO3 section

For Optical Use

Orientation Diameter Reference Flat Perpendicular to Sub Flat Thickness Surface Finish
Z – Cut 76.2 ± 0.7 (mm) 22 ± 3 (mm) Y 10 ± 3 (mm) – X 0.50 ± 0.03 (mm) Front Mirror Polished
Y – Cut Z + X Back Mirror Polished or Ground
Z – Cut Z – Y

LiNbO3 Optical Wafer

Optical wafer diagram

  • Integrated optical grade quality
  • Thickness 1 mm
  • Diameter 3″, 4″ or 5″
  • X – cut
  • Both sides optical polished
  • Y – or Z – axis orientated with flat
  • Surface quality: scratch – , hole – and wiper free by magnification of 800
  • Parallelity: typ. < 10′
  • Flatness: typ. < 1µm / 10 mm (test region 98 %)

MgO : LiNbO3

  • Integrated optical grade quality
  • Thickness 1 mm
  • Diameter 3″, 4″ or 5″
  • X – cut
  • Both sides optical polished
  • Y – or Z – axis orientated with flat
  • Surface quality: scratch – , hole – and wiper free by magnification of 800
  • Parallelity: typ. < 10′
  • Flatness: typ. < 1µm / 10 mm (test region 98 %)
  • For MgO – doped material: 5 mol % Mg
